35-Ton 2-Axle 2-Frame Wide-Neck Trailer

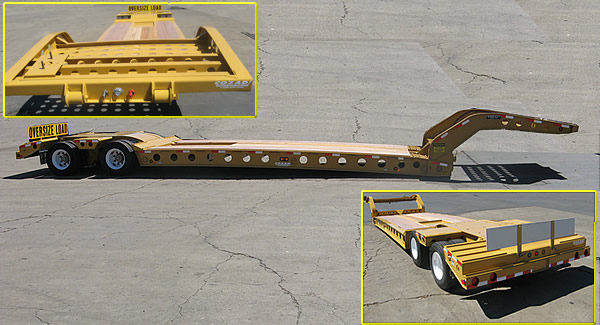

35 Ton 2-Axle 2-Frame Wide Neck

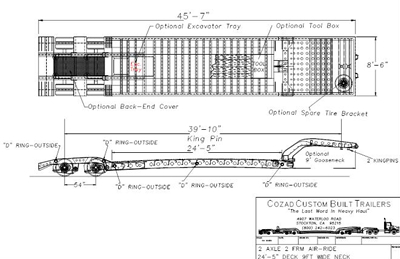

35 Ton 2-Axle 2-Frame Wide Neck Drawing
FEATURES
  Standard Optional
Construction 100% A514 T-1
Decking Douglar fir (2.5") (2.5") Apitong
Deck / Options 24’-5” Length STD

8'-6" Wide
Tool Box

Excavator Tray Rear Of Deck

Auxiliary Lighting Sockets [Front & Rear Of Deck]

Outriggers (12) Heavy Duty 3" wide

2’ Front Loading Ramps / Steel / Aluminum
Back-End / Options 12" Standard Beavertail

54" Axle Spreads
Extended beavertail [Shown]

Scraper Fenders [Front / Rear Axle]

Cover Plate Over Back-End [Center]

Rear Loading Ramps / 5 – 6’ / Steel / Aluminum
Gooseneck(s) 8' Mechanical Detachable 9’ Mechanical Detachable

Full Screen

Gooseneck Fenders

Spare Tire Bracket
Axles 25,000 lb Oil Bath
Suspensions Air Ride or Walking Beam
Brakes S Cam drum brakes Air Disc (Anti-Lock)
Tires 235/75R x 17.5 Continental Auto Air Inflation System
Wheels Steel Disc, 8 Hole Hub Pilot 8 Hole Aluminum Hub Pilot
Lighting Sealco Modular Sealed Wiring System

LED Lights

Paint 2 Coats Primer & Paint / White STD Your Color
Overall Length 44'-7" Estimate With 8' Gooseneck
Estimated Weight 13,500 +/- 3%
  • Measurements, clearance and dimensions are approximate and describe a standard trailer
  • Drawing is not to scale.
  • Weights, if shown, are typical and will vary.
  • All specifications, illustrations and information contained herein are based on the latest information available at the time of publication. Cozad Trailer Sales, LLC reserve the right to make any changes without notice or obligation.

WARRANTY

We warrant this product for one year from the date of delivery to be free from defect in material and workmanship; also that it will perform its intended job satisfactorily when under normal use and service. Our responsibility is limited to making good at our facility by repair or replacement of any part which upon our examination is found to be defective in its construction or application. All freight charges are for our customers account. All vendor parts carry their own warranty.
