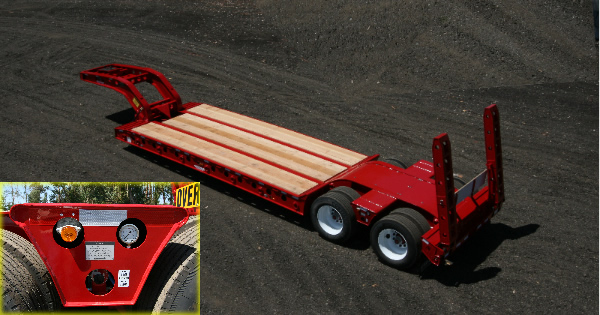

35-Ton 8 Tire California Fire Special Trailer


35-Ton 8 Tire California Fire Special

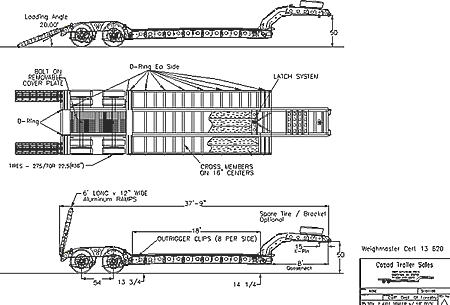

35-Ton 8 Tire California Fire Special Drawing

35 TON 4 FRAME NARROW NECK AIRRIDE [CAL. FIRE]
  Standard Optional
Construction

100% A514 T-1


Decking

Douglas fir (3")

(3")  Apitong

Deck / Options

18” Length STD [Cal. Fire]

8’-6” Wide

Tool Box
Auxiliary Lighting Sockets [Front & Rear Of Deck]
Outriggers (12) Heavy Duty 3" wide

2’ Front Loading Ramps / Steel / Aluminum
Gooseneck(s)

8’ Mechanical Detachable

9’ Mechanical Detachable

Spare Tire Bracket
Suspension

Air Ride


Brakes

16-1/2 x 7” Drum Brake


Tires

275/70R22.5.5 Continental

Auto Air Inflation System

Wheels

Steel Disc, 10 Hole Stud Pilot

Aluminum / 10 Hole Stud Pilot

Aluminum / 10 Hole Hub Pilot W/Air Disc Brakes
Lighting

Sealco Modular Sealed Wiring System

LED Lights


Paint

2 Coats Primer & Paint / White STD

Your color

Overall Length

37'-9” With 18’ Deck / 8’ Gooseneck


Deck Height

27 " Empty / 21” Loaded [Estimate Only]


Back-End / Options

12” Standard Beavertail

54” Axle Spreads

Cover Plate Over Back-End [Center]

Rear Loading Ramps / 5 – 6’ / Steel / Aluminum
Weight (Estimated)

13,500 +/-3%


  • Measurements, clearance and dimensions are approximate and describe a standard trailer
  • Drawing is not to scale.
  • Weights, if shown, are typical and will vary.
  • All specifications, illustrations and information contained herein are based on the latest information available at the time of publication. Cozad Trailer Sales, LLC reserve the right to make any changes without notice or obligation.

____________________________________________________

WARRANTY

We warrant this product for one year from the date of delivery to be free from defect in material and workmanship; also that it will perform its intended job satisfactorily when under normal use and service. Our responsibility is limited to making good at our facility by repair or replacement of any part which upon our examination is found to be defective in its construction or application. All freight charges are for our customers account. All vendor parts carry their own warranty.
