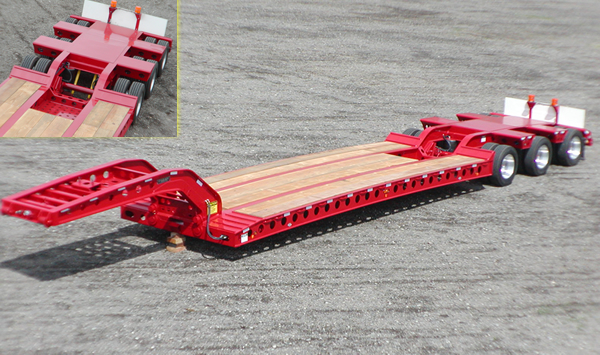

50 Ton 3-Axle Trailer



50 Ton 3-Axle Trailer

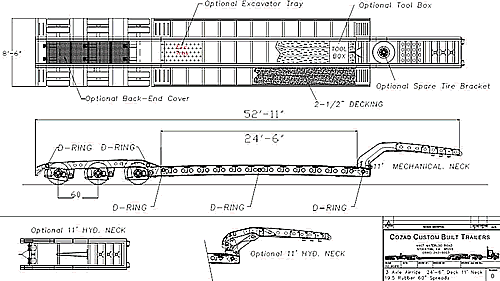

50 Ton 3-Axle Trailer Drawing

FEATURES
  Standard Optional
Construction
100% A514 T-1 Steel

Decking

Douglas fir 2-1/2"

2-1/2” Apitong

Deck / Options

24’-6” Length STD

 8’-6” Wide

Tool Box

Excavator Tray

Auxiliary Lighting Sockets [Front & Rear Of Deck]

Outriggers (12) Heavy Duty 3" wide

2’ Front Loading Ramps / Steel / Aluminum

Back-End /Options

60” Axle Spreads

Scraper Fenders [Front / Mid / Rear Axle]

Cover Plate Over Center

Rear Loading Ramps / 5 – 6’ / Steel / Aluminum

Gooseneck(s)

Mech. Detachable

Hydraulic

 Spare Tire Bracket {Mechanical Neck Only]

Suspension Air Ride
Length 52'
Brakes

S Cam drum brakes

Air Disc (Anti-Lock)
Tires

265/70 R19.5

Auto Air Inflation System

Wheels

Steel Disc, 10 Hole Hub Pilot

Aluminum, 10 Hole Hub Pilot

Lighting

Sealco Modular Sealed Wiring System

LED Lights


Paint

2 Coats Primer & Paint / White STD

Your color

Axles

25,000 lb Oil Bath


Flat Deck Height

27" Empty estimates only


Overall Length

Under 53’' With 24’-6” Deck / 11’ Neck


Estimated Weight

(12) Heavy Duty 3" wide



  • Measurements, clearance and dimensions are approximate and describe a standard trailer
  • Drawing is not to scale.
  • Weights, if shown, are typical and will vary.
  • All specifications, illustrations and information contained herein are based on the latest information available at the time of publication. Cozad Trailer Sales, LLC reserve the right to make any changes without notice or obligation.

____________________________________________________

WARRANTY

We warrant this product for one year from the date of delivery to be free from defect in material and workmanship; also that it will perform its intended job satisfactorily when under normal use and service. Our responsibility is limited to making good at our facility by repair or replacement of any part which upon our examination is found to be defective in its construction or application. All freight charges are for our customers account. All vendor parts carry their own warranty.
