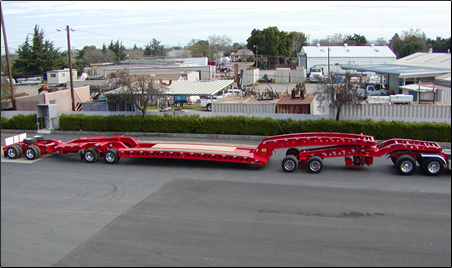

70 Ton Baby 9 Booster Trailer





FEATURES
  Standard Optional
Construction
100% A514 T-1

Decking

Douglas fir (3")

Apitong (3")

Gooseneck(s) Mechanical Detachable
Suspension Rubber bushed Walking Beam
Hydraulic Lift

Kohler 13 HP Electric / Pull-start Gas Engine

2 / 50 Ton Hydraulic Rams; 24" Lift

Kohler 25 HP Electric / Pull-start

 Set-up For Wet Kit On Tractor

Axles

25,000 lb Oil Bath


Brakes

S Cam drum brakes

Air Disc (Anti-Lock)
Tires

265/70 R19.5 Continental

Auto Air Inflation System

Wheels

Steel Disc, 10 Hole Hub Pilot

Aluminum, 10 Hole Hub Pilot

Lighting

Sealco Modular Sealed Wiring System

LED Lights


Paint

2 coats primer & paint

White STD

Your color

Overall Length

88’-7” Estimate


Deck Length

28' STD

Special Length Optional

Flat Deck Height

33" Empty estimates only


Drop Side Height

28" Empty estimates only


Width

8’-6”' STD

10’ Wide

Deck Type/Options Drop Side / Flat deck

Pin Joint / Deck Extension[‘s]

Tool Box In Front Of Deck

Excavator Tray Rear Of Deck

Jeep

 24” Hyd Lift STD

Detachable Neck / Fixed Neck

Set-Up For Wet Kit On Tractor

Booster

Spare Tire Brackets

Hydraulic Bump Steering

With Kohler 13 HP Electric / Pull-start Gas Engine

Outriggers

(18) Heavy Duty 3" wide

Weight

46,500 Lb Estimate


Capacity

70 Ton



  • Measurements, clearance and dimensions are approximate and describe a standard trailer

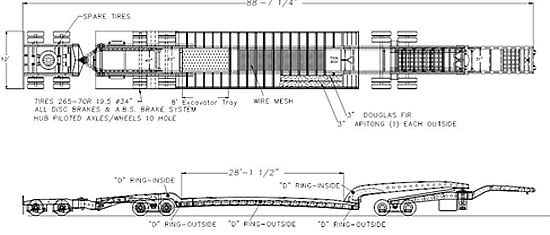

    Drawing is not to scale.
    Weights, if shown, are typical and will vary.
  • All specifications, illustrations and information contained herein are based on the latest information available at the time of publication. Cozad Trailer Sales, LLC reserve the right to make any changes without notice or obligation.

____________________________________________________

WARRANTY

We warrant this product for one year from the date of delivery to be free from defect in material and workmanship; also that it will perform its intended job satisfactorily when under normal use and service. Our responsibility is limited to making good at our facility by repair or replacement of any part which upon our examination is found to be defective in its construction or application. All freight charges are for our customers account. All vendor parts carry their own warranty.
