70/75 Ton California Baby 9-Axle Trailer




FEATURES
Construction 100% HT 130 Steel
Decking Douglas fir (3") / Apitong
Gooseneck(s) Mechanical Detachable
Suspension Walking Beam and Air
Axles IMT 25,000 lb w/ oil seals
Hydraulic Lift

Kholer 25 hp Electric pull-start

Gas engine w/2 50 ton hydraulic Rams; 24" lift

Brakes Drum S-cam / DISC Brakes
Tires 265/70R x 19.5 Continental
Wheels Steel Disc, 10 hole / Aluminum
Lighting

Grote Modular Sealed

Wiring System LED

Paint

2 coats primer & paint

White STD / Your color

Deck Length 26' STD / 28 -30' optional
Flat Deck Height 21" - 23" loaded - estimates only
Drop Side Height 16" - 18" loaded - estimates only
Deck Width 8'6" STD
Overall Length 86'
Outriggers (18) Heavy Duty 3" wide
Estimated Weight 37,500 lbs +/-
  • Measurements, clearance and dimensions are approximate and describe a standard trailer

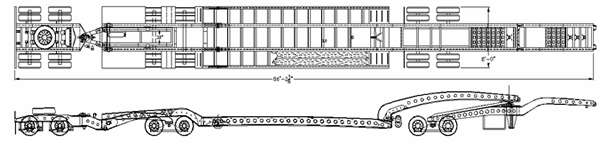

  • Drawing is not to scale.
  • Weights, if shown, are typical and will vary.
  • All specifications, illustrations and information contained herein are based on the latest information available at the time of publication. Cozad Trailer Sales, LLC reserve the right to make any changes without notice or obligation.

*D Rings required for Tie Downs*


WARRANTY

We warrant this product for one year from the date of delivery to be free from defect in material and workmanship; also that it will perform its intended job satisfactorily when under normal use and service. Our responsibility is limited to making good at our facility by repair or replacement of any part which upon our examination is found to be defective in its construction or application. All freight charges are for our customers account. All vendor parts carry their own warranty.
