80-Ton 9-Axle Triple 16 Steerable


FEATURES
  Standard Optional
Construction
100% A514 T-1 Steel

Capacity 80 Ton
Width

10' STD


Jeep

2 / 50 Ton Hydraulic Rams; 24" Lift

Kohler 25 HP Electric / Pull-start Hydraulic System

Detachable Neck / Fixed Neck

Steering Dolly

2 / 50 Ton Hydraulic Rams; 24" Lift

Manual Steering Capabilities With Kohler 25 HP Electric / Pull-start Hydraulic System

Spare Tire Brackets

Decking

Douglas fir (3")

Apitong (3")

Deck Type/ Options

Drop Side / Flat deck



Pin Joint / Deck Extension[‘s]

Beam Deck

Tool Box In Front Of Deck

Excavator Tray Rear Of Deck

Outriggers (18) Heavy Duty 3" wide

Gooseneck(s)

Mech. Detachable



Suspension

Rubber Bushed Walking Beam

72” Axle Spreads


Deck Length

28' STD

Special Length Optional

Brakes

S Cam drum brakes

Air Disc (Anti-Lock)
Tires

215/75R x 17.5 Continental

Auto Air Inflation System

Wheels

Steel Disc, 8 Hole Hub Pilo

Aluminum, 8 Hole Hub Pilot

Lighting

Sealco Modular Sealed Wiring System

LED Lights


Paint

2 Coats Primer & Paint / White STD

Your color

Axles

25,000 lb Oil Bath


Flat Deck Height

33" Empty estimates only


Drop Side Height

28" Empty estimates only


Overall Length

92’-8”  With 28’ Deck



  • Measurements, clearance and dimensions are approximate and describe a standard trailer

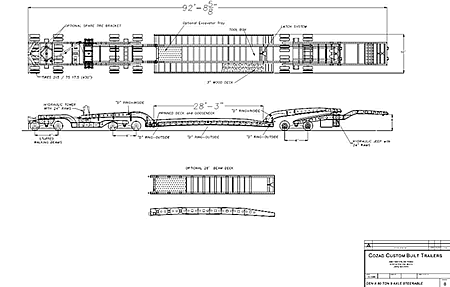

    Drawing is not to scale.
    Weights, if shown, are typical and will vary.
  • All specifications, illustrations and information contained herein are based on the latest information available at the time of publication. Cozad Trailer Sales, LLC reserve the right to make any changes without notice or obligation.

____________________________________________________

WARRANTY

We warrant this product for one year from the date of delivery to be free from defect in material and workmanship; also that it will perform its intended job satisfactorily when under normal use and service. Our responsibility is limited to making good at our facility by repair or replacement of any part which upon our examination is found to be defective in its construction or application. All freight charges are for our customers account. All vendor parts carry their own warranty.
