85 Ton Steerable Trailer 3+3+3



FEATURES
  Standard Optional
Construction

100% A514 T-1 STEEL


Decking Douglas fir (3")

Apitong (3")

Gooseneck

Mechanical Detachable


Suspension

Rubber Bushed Walking Beam

 60” Axle Spreads


Steering Dolly

2 / 50 Ton Hydraulic Rams; 24" Lift

Manual Steering Capabilities With Kohler 25 HP Electric / Pull-start Hydraulic System

Spare Tire Brackets

Axles

25,000 lb Oil Bath


Brakes

S Cam drum brakes

Air Disc (Anti-Lock)
Tires

265/70R x 19.5 Continental

Auto Air Inflation System

Wheels

Steel Disc, 10 Hole Hub Pilot

Aluminum, 10 Hole Hub Pilot

Lighting

Sealco Modular Sealed Wiring System

LED Lights


Paint

2 Coats Primer & Paint / White STD

Your color

Overall Length

112’  With 28’ Deck


Jeep

 2 / 50 Ton Hydraulic Rams; 24" Lift

Kohler 25 HP Electric / Pull-start Hydraulic System

Detachable Neck / Fixed Neck

 Set-Up For Wet Kit On Tractor

Flat Deck Height

33" Empty estimates only


Drop Side Height

28" Empty estimates only


Width

10' STD


Estimated Weight

76,800 Lb With 30’ Dropside Deck


Capacity 85 Ton
  • Measurements, clearance and dimensions are approximate and describe a standard trailer

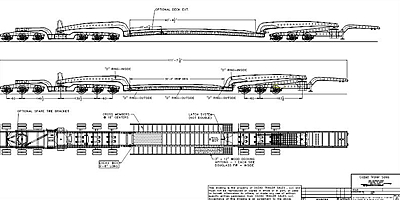

  • Drawing is not to scale.
  • Weights, if shown, are typical and will vary.
  • All specifications, illustrations and information contained herein are based on the latest information available at the time of publication. Cozad Trailer Sales, LLC reserve the right to make any changes without notice or obligation.

____________________________________________________

WARRANTY

We warrant this product for one year from the date of delivery to be free from defect in material and workmanship; also that it will perform its intended job satisfactorily when under normal use and service. Our responsibility is limited to making good at our facility by repair or replacement of any part which upon our examination is found to be defective in its construction or application. All freight charges are for our customers account. All vendor parts carry their own warranty.
