70 Ton 2-3-2 Booster Trailer

FEATURES

	Standard	Optional

Construction	100% A514 T-1
Decking	Douglas fir (2.5")	(2.5") Apitong
Deck Length	28' STD	Special Length Optional
Flat Deck Height	33" Empty estimates only
Drop Side Height	28" Empty estimates only
Outriggers		(18) Heavy Duty 3" wide
Gooseneck(s)	Mechanical Detachable 8' STD
Deck Type /Options	Drop Side / Flat deck	Pin Joint / Deck Extension[‘s] Tool Box In Front Of Deck Excavator Tray Rear Of Deck
Width	8’-6”' STD	10’ Wide
Suspension	Rubber Bushed Walking Beam
Axles	25,000 lb Oil Bath
Brakes	S Cam drum brakes	Air Disc (Anti-Lock)
Tires	275/80 R22.5 Continental	Auto Air Inflation System
Wheels	Steel Disc, 10 Hole Hub Pilot	Aluminum, 10 Hole Hub Pilot
Jeep	24” Hyd Lift STD	Detachable Neck / Fixed Neck Set-Up For Wet Kit On Tractor
Booster		Spare Tire Brackets Hydraulic Bump SteeringWith Kohler 13 HP Electric / Pull-start Gas Engine
Hydraulic Life	Kohler 13 HP Electric / Pull-start Gas Engine 2 / 50 Ton Hydraulic Rams; 24" Lift	Kohler 25 HP Electric / Pull-start Set-up For Wet Kit On Tractor
Lighting	Sealco Modular Sealed Wiring System LED Lights
Paint	2 Coats Primer & Paint / White STD	Your color
Overall Length	99’-6” Estimate
Estimated Weight	54,200 Lb Estimate
Capacity	75 Ton

Measurements, clearance and dimensions are approximate and describe a standard trailer

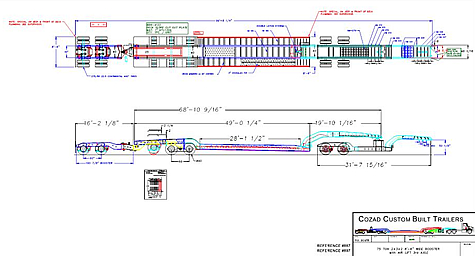

Drawing is not to scale.
Weights, if shown, are typical and will vary.
All specifications, illustrations and information contained herein are based on the latest information available at the time of publication. Cozad Trailer Sales, LLC reserve the right to make any changes without notice or obligation.

____________________________________________________

WARRANTY

We warrant this product for one year from the date of delivery to be free from defect in material and workmanship; also that it will perform its intended job satisfactorily when under normal use and service. Our responsibility is limited to making good at our facility by repair or replacement of any part which upon our examination is found to be defective in its construction or application. All freight charges are for our customers account. All vendor parts carry their own warranty.
