80 Ton Triple 16 Booster Trailer

FEATURES

	Standard	Optional

Construction	100% A514 T-1 Steel
Capacity	80 Ton
Width	10' STD
Jeep	24” Hyd Lift STD	Detachable Neck / Fixed Neck Set-Up For Wet Kit On Tractor
Hydraulic Lift	Kohler 13 HP Electric / Pull-start Gas Engine 2 / 50 Ton Hydraulic Rams; 24" Lift	Kohler 25 HP Electric / Pull-start Set-up For Wet Kit On Tractor
Booster		Spare Tire Brackets Hydraulic Bump Steering With Kohler 13 HP Electric / Pull-start Gas Engine
Decking	Douglas fir (3")	Apitong (3")
Deck Type/ Options	Drop Side / Flat deck	Tool Box In Front Of Deck Excavator Tray Rear Of Deck Outriggers (18) Heavy Duty 3" wide
Gooseneck(s)	Mech. Detachable
Suspension	Rubber Bushed Walking Beam 72” Axle Spreads
Deck Length	28' STD	Special Length Optional
Brakes	S Cam drum brakes	Air Disc (Anti-Lock)
Tires	215/75R x 17.5 Continental	Auto Air Inflation System
Wheels	Steel Disc, 8 Hole Hub Pilo	Aluminum, 8 Hole Hub Pilot
Lighting	Sealco Modular Sealed Wiring System LED Lights
Paint	2 Coats Primer & Paint / White STD	Your color
Axles	25,000 lb Oil Bath
Flat Deck Height	33" Empty estimates only
Drop Side Height	28" Empty estimates only
Estimated Weight	51,000 Lb
Overall Length	88’-6”

Measurements, clearance and dimensions are approximate and describe a standard trailer

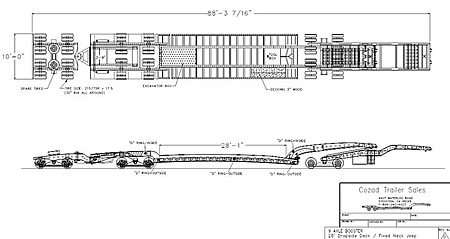

Drawing is not to scale.

Weights, if shown, are typical and will vary.
All specifications, illustrations and information contained herein are based on the latest information available at the time of publication. Cozad Trailer Sales, LLC reserve the right to make any changes without notice or obligation.

____________________________________________________

WARRANTY

We warrant this product for one year from the date of delivery to be free from defect in material and workmanship; also that it will perform its intended job satisfactorily when under normal use and service. Our responsibility is limited to making good at our facility by repair or replacement of any part which upon our examination is found to be defective in its construction or application. All freight charges are for our customers account. All vendor parts carry their own warranty.
