35-Ton Flip Tail Trailer

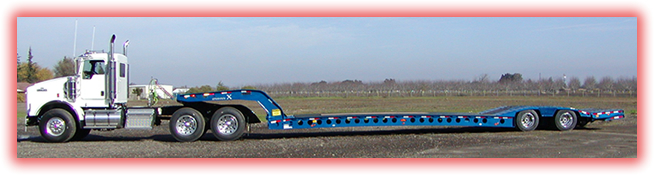

35 Ton 2-Axle 2-Frame Wide Neck

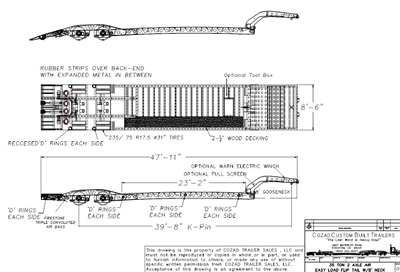

35 Ton Flip Tail Drawing

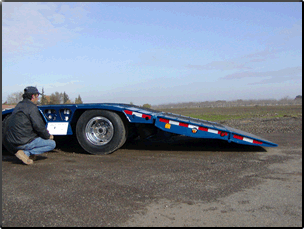

Flip tail in Action Flip tail

FEATURES
  Standard Optional
Construction

100% A514 T-1


Decking

Douglas fir [2.5”]

Apitong (2.5")

Deck / Options

23’ Length STD

8’-6” Wide

Tool Box

Auxiliary Lighting Sockets [Front & Rear Of Deck]

Outriggers (12) Heavy Duty 3" wide

2’ Front Loading Ramps / Steel / Aluminum

Gooseneck(s)

8' Mechanical Detachable

9' Mechanical Detachable

Full Screen

Spare Tire Bracket

Warn Electric Winch

Suspension

Air Ride 54” Axle Spreads


Brakes S Cam drum brakes Air Disc (Anti-Lock)
Tires

235/75R x 17.5 Continental

Auto Air Inflation System

Wheels

Steel Disc, 8 hole Hub Pilot

Aluminum / 8 hole Hub Pilot

Lighting

Sealco Modular Sealed Wiring System

LED Lights


Paint

2 Coats Primer & Paint / White STD

Your color

Overall Length

47' -11”  With 8’ Gooseneck


Deck Height (Empty) 27'
Deck Height (Loaded) 23'
Weight (Estimated) 16,000 lbs.
  • Measurements, clearance and dimensions are approximate and describe a standard trailer
  • Drawing is not to scale.
  • Weights, if shown, are typical and will vary.
  • All specifications, illustrations and information contained herein are based on the latest information available at the time of publication. Cozad Trailer Sales, LLC reserve the right to make any changes without notice or obligation.



____________________________________________________

WARRANTY

We warrant this product for one year from the date of delivery to be free from defect in material and workmanship; also that it will perform its intended job satisfactorily when under normal use and service. Our responsibility is limited to making good at our facility by repair or replacement of any part which upon our examination is found to be defective in its construction or application. All freight charges are for our customers account. All vendor parts carry their own warranty.
