35-Ton 2-Axle 4-Frame Narrow-Neck Trailer

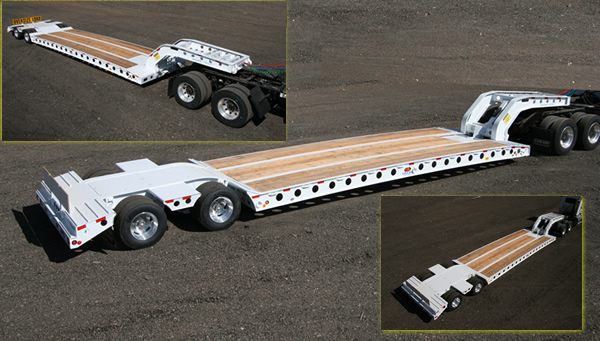

35 Ton 2-Axle 2-Frame Wide Neck

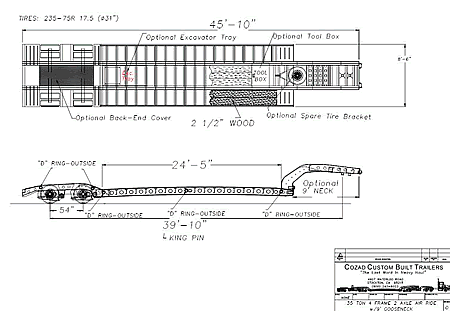

35 Ton 2-Axle 2-Frame Wide Neck Drawing



FEATURES
  Standard Optional
Construction

100% A514 T-1


Decking Douglas fir (2.5")

(2.5")  Apitong

Deck / Options

24’-5” Length STD

8’-6” Wide

Tool Box

Auxiliary Lighting Sockets [Front & Rear Of Deck]

Outriggers (12) Heavy Duty 3" wide

2’ Front Loading Ramps / Steel / Aluminum

Deck Height

27 " Empty / 21” Loaded [Estimate Only]



Back-End / Options

12” Standard Beavertail

54” Axle Spreads

Extended beavertail [Shown]

Scraper Fenders [Front / Rear Axle]

Cover Plate Over Back-End [Center]

Rear Loading Ramps / 5 – 6’ / Steel / Aluminum

Gooseneck(s)

8’ Mechanical Detachable

9’ Mechanical Detachable

Spare Tire Bracket

Axles

25,000 lb Oil Bath


Suspension Air Ride
Brakes

12-1/4 x 7” Drum Brake

17.5 Air Disc (Anti-Lock)

Tires

235/75R x 17.5 Continental

Auto Air Inflation System

Wheels

Steel Disc, 10 Hole Stud Pilot

Aluminum / 10 Hole Stud Pilot

Aluminum / 8 Hole Hub Pilot W/Air Disc Brakes

Lighting

Sealco Modular Sealed Wiring System

LED Lights


Paint

2 Coats Primer & Paint / White STD

Your color

Overall Length

44'-10” Estimate With 8’ Goosenec


Estimated Weight

13,500 +/-3%


  • Measurements, clearance and dimensions are approximate and describe a standard trailer
  • Drawing is not to scale.
  • Weights, if shown, are typical and will vary.
  • All specifications, illustrations and information contained herein are based on the latest information available at the time of publication. Cozad Trailer Sales, LLC reserve the right to make any changes without notice or obligation.

____________________________________________________

WARRANTY

We warrant this product for one year from the date of delivery to be free from defect in material and workmanship; also that it will perform its intended job satisfactorily when under normal use and service. Our responsibility is limited to making good at our facility by repair or replacement of any part which upon our examination is found to be defective in its construction or application. All freight charges are for our customers account. All vendor parts carry their own warranty.
