60 Ton 10 Foot Wide Trailer

60 Ton 10 Foot Wide Trailer

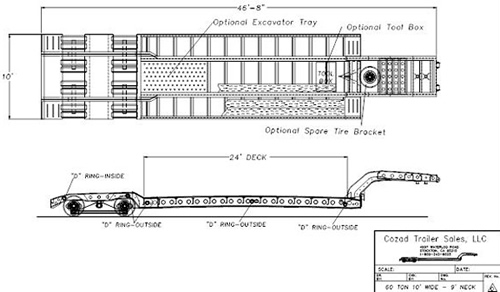

60 Ton 10 Foot Wide Trailer Drawing

  Standard Optional

100% A514 T-1


Douglas fir (2.5")

(2.5")  Apitong


Mechanical Detachable 8' STD Short Neck

9'w/2 pins or10'6" w/3 pins

Spare Tire Bracket

Tool Box


Walking Beam


Air Disc (Anti-Lock)


215/75R x 17.5 Continental

Auto Air Inflation System


Steel Disc, 8 Hole Hub Pilot

8 Hole / Aluminum Hub Pilot


Sealco Modular Sealed Wiring System

LED Lights


2 Coats Primer & Paint / White STD

Your color

Deck /Options

10' Wide Std

 24’ Length

Tool Box

Excavator Tray

Auxiliary Lighting Sockets [Front & Rear Of Deck]

Outriggers (12) Heavy Duty 3"

2’ Front Loading Ramps / Steel / Aluminum

Back-End Options

72” Axle Spreads

Scraper Fenders [Front / Rear Axle]

Rear Loading Ramps / 5 – 6’ / Steel / Aluminum

Overall Length

46'-8”  Estimate

Deck Length


Deck Width

10' Wide Std

Deck Height

27" estimate only


18,700 +/-3% Estimate

  • Measurements, clearance and dimensions are approximate and describe a standard trailer
  • Drawing is not to scale.
  • Weights, if shown, are typical and will vary.
  • All specifications, illustrations and information contained herein are based on the latest information available at the time of publication. Cozad Trailer Sales, LLC reserve the right to make any changes without notice or obligation.



We warrant this product for one year from the date of delivery to be free from defect in material and workmanship; also that it will perform its intended job satisfactorily when under normal use and service. Our responsibility is limited to making good at our facility by repair or replacement of any part which upon our examination is found to be defective in its construction or application. All freight charges are for our customers account. All vendor parts carry their own warranty.
